Modular Automation Components - Elevating Tables

Precision Pneumatic Elevating Tables

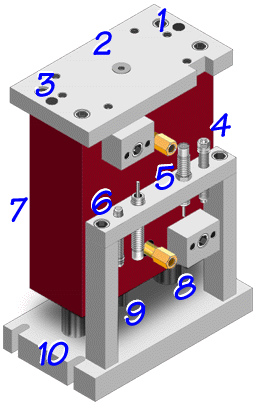

Elevating Table Features
  1. Tapped mounting holes
  2. Nickel plated mounting plate
  3. Dowel pin holes for positioning
  4. Built-in stop sensing capabilities
  5. Shock absorbers
  6. Adjustable stopscrews for end-of-stroke
  7. Additional mounting holes on flat side
  8. Case hardened and ground shafts
  9. Chrome plated cylinder rods and long life seals
  10. Mounting slots for adjustment

    Contact us with your application.

Barrington Automation pneumatic elevating tables are engineered and manufactured for reliability and precision in production environments. Elevating tables are available with strokes up to 4" and can produce lifting force up to 190 pounds. Precise stroke adjustments and end-of-stroke sensing is available. Seal kits and rebuild kits are available. Contact us for your more information.

See Elevating Table
Specifications and Drawings
